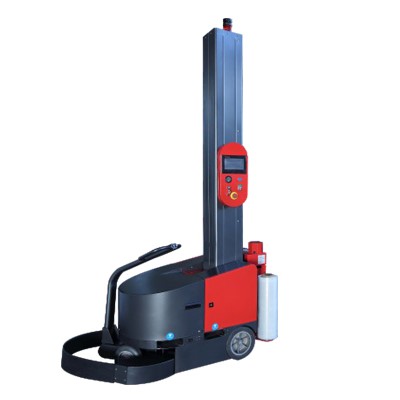

ROBI-600B Robot Stretch Wrapper PRESTRETCH

12% RABATT
ROB-600B Robot Stretch Wrapper PRESTRETCH
Produktdetails

Paketmaße

1.44 x 1 x 2.75 m

Paketgewicht

430 kg

Mengenrabatte
Kaufen 3 – 5 3% RABATT Automatic at checkout
Kaufen 6 – 10 5% RABATT Automatic at checkout
Kaufen 11 – 7% RABATT Automatic at checkout
Dieser Artikel ist derzeit nicht auf Lager. Sie können ihn durch Zahlung von 30% jetzt reservieren. Voraussichtliche Lieferzeit: 90 Tage. Der Restbetrag wird bei Ankunft der Ware angefordert.

Versand ab EU-Lager • Voraussichtliche Lieferung: 3-7 Tage

SKU: 330800

Ursprünglicher Preis war: 6.800 €Aktueller Preis ist: 5.999 €.

Preis exkl. MwSt. • MwSt. wird beim Checkout angezeigt

Verfügbar mit 30% Anzahlung. Voraussichtliche Lieferzeit: 90 Tage.

🔒 Sicherer Checkout • PCI‑DSS konform

SCHNELLE LIEFERUNG

100% GELD-ZURÜCK-GARANTIE LIEFERUNG

ÜBER 30 JAHRE ERFAHRUNG

KOSTENLOSER VERSAND

FÜR BATTERIE-UMREIFUNGSWERKZEUGE UND -SETS

Machine will be assembled in our facilities and delivered assembled. You will need forklift to put it down the truck.
Assembly Price: €280.00
🛡️ Ein Jahr EU-Garantie
⚡ High Speed Wrapping
✅ Pre-stretch Film
🛡️ Durable Build

Beschreibung

ROBI-600A/B Robot Stretch Wrapper PRESTRETCH

Easily movable and adjustable robot stretch wrapper for all kinds of loads in any environment and industry

The highly adaptable, self-propelled robot stretch wrapper ROBI-600A/B is ideal for wrapping all pallet loads and objects of any size and shape. It’s designed based on a revolutionary idea to have the wrapping machine move and revolve around the load. Contrary to stationary wrapping machines, this method reduces the time and hassle of placing a load on and off the machine. It also makes wrapping possible for objects that would otherwise not fit standard wrapping machines, as it revolves perfectly around loads of every shape, size, and weight.

The wrapper’s compact design allows for optimal performance even in tight spaces, while its high maneuverability provides solid control over the wrapping process. It’s an ideal wrapping companion in most working environments and industries and performs well in ambient air temperature between -10°C and 40°C for optimum wrapping tension and strength.

ROBI-600A/B robot stretch wrapper allows for great flexibility and optimization of working progress thanks to auto and manual operating modes. Easy and secure film threading saves time and ensures optimal tension of wrapping film. Based on the parameters of the operation and load, the robot wrapper provides high adjustability and customization for the best wrapping results.

ROBI-600A/B wrapper is powered by a robust and durable battery lasting up to 800 charges. Its control panel allows for easy control of the operation with start and stop buttons, reset and emergency stop buttons, and battery level indicator lights. When the battery is charged for 8 hours it can wrap 200 pallets.



Features of ROBI 600A/B Robot Stretch Wrapper PRESTRETCH

  • Power pre-stretch: 300% and 230% two-step change by handle
  • Fully charged can wrap 200 Pallets
  • High control of wrapping procedure
  • Digital display of parameters
  • High mobility and adjustability
  • Durable battery



Easy handling and fast wrapping with ROBI 600A/B Robot Stretch Wrapper PRESTRETCH

ROBI 600A/B is designed to simplify the packing process while ensuring the best results for every case. Its handling and navigation are equally straightforward.

First, move the robot stretch wrapper to the object area. Next, pull the film from the wrapper and place it on the object. Lastly, set the number of wraps on the control panel and start the machine. The wrapper will revolve around the object and wrap it automatically according to the presets.



ROBI 600A/B Robot Stretch Wrapper PRESTRETCH

specifications

Model ROBI-600A/B
Power source Battery
Battery configuration Charge power 1P AC220V/110V 50/60Hz
Model 6-GVF-120A
Weight 43 + 1kg
Size (L x W x H) 407 x 174 x 216 (209) mm
Lifetime Up to 800 charges
Wrapping speed 90m/min
Max. pallet size No limit
Min. pallet size 600x600mm
Max. wrapping height 2400mm
Film stretch (%) ROBI-600A Mechanical stretch
ROBI-600B Power pre-stretch: 300% and 230% two-step change by handle
Film material LLDPE film, width ≦ 500mm, outer diameter ≦ 280mm
Film tension Adjustable
Max. film spec. ∅250x500mm
Elevator unit speed Adjustable
Gross weight/Net weight 450kg/430kg
Machine configuration PLC German “Siemens”
Battery CHILWEE
LCD text Chinese “MEIWA”
Travel switch French “Schneider”
Button switch French “TE”
Connector French “TE”
Sensor German “P+F”
Motor Chinese “MEIWA”
Machine size (L x W x H) 1583 x 1233 x 2770mm
Noise ≦ 75dB
Environment Humidity ≦ 98% Temperature from -10 to 40°C
Packing size (L x W x H) 1950 x 1250 x 3000mm



Core features of ROBI-600A/B Battery-Powered Robot Stretch Wrapper

  • Different operation modes allow for easy adjustment to all kinds of tasks in different environments while ensuring the best results.
  • Reliable and easy control via a control panel increases efficiency and ensures optimal performance for every task.
  • Digital display provides a clear overview and management of chosen parameters to adapt to the load’s dimensions, weight, and shape.
  • Chain-driven film carriage improves stability and ensures optimal tension of wrapping film.



Video of ROBI-600A/B Battery-Powered Robot Stretch Wrapper

Zusätzliche Informationen

Gewicht 430,0 kg
Größe 1,44 × 1 × 2,75 m
Parameter Specification
Model

ROBI-600A/B

Power source

Battery

Battery configuration

Charge power

Model

Weight

Size

Lifetime

Wrapping speed

90m/min

Max. pallet size

No limit

Min. pallet size

600x600mm

Max. wrapping height

2400mm

Film stretch (%)

ROBI-600A Mechanical stretch

Film material

LLDPE film, width ≦ 500mm, outer diameter ≦ 280mm

Film tension

Adjustable

Max. film spec.

∅250x500mm

Elevator unit speed

Adjustable

Gross weight/Net weight

450kg/430kg

Machine configuration

PLC

Battery

LCD text

Travel switch

Button switch

Connector

Sensor

Motor

Machine size

(L x W x H) 1583 x 1233 x 2770mm

Noise

≦ 75dB

Environment

Humidity ≦ 98%

Packing size

(L x W x H) 1950 x 1250 x 3000mm

What types of loads can the ROBI-600B Robot Stretch Wrapper handle?

It can wrap pallets of every shape, dimension, and weight, making it suitable for diverse load types.

How many pallets can the ROBI-600B wrap on a full battery charge?

A fully charged battery can wrap up to 200 pallets.

What kind of battery performance does the ROBI-600B offer?

It uses a robust and durable battery that lasts up to 800 charges, ensuring long-term reliability.

How does the height detecting sensor benefit the wrapping process?

The sensor improves height control, ensuring precise and consistent wrapping for varying pallet heights.

Is the ROBI-600B easy to move between different workstations?

Yes, it is designed to be easily movable from one load to another for flexible operation.

What control interface does the ROBI-600B use?

It operates through PLC control and an LCD text display for reliable and user-friendly performance.

How does the chain-driven film carriage improve wrapping quality?

It optimizes wrapping film tension, resulting in stable and secure pallet wrapping.

What features contribute to the energy efficiency of the ROBI-600B?

The soft start, soft positioning, and efficient battery system contribute to high energy savings.

Can the ROBI-600B be used in various work environments?

Yes, it is suitable for all kinds of conditions and work environments, including small spaces.

Is maintenance of the ROBI-600B complicated?

No, the machine is designed for easy maintenance to minimize downtime.

Zusammenfassung

  • Revolving around objects, ideal for every shape, dimension, and weight
  • Compact design performs well in small spaces
  • Fully charged can wrap 200 pallets
  • Powered by a robust and durable battery lasting up to 800 charges
  • Optimal battery autonomy with battery charger and indicator
  • Easily movable from one load to another
  • Suitable for all kinds of conditions and work environments
  • Height detecting sensor improves height control
  • Chain-driven film carriage optimizes wrapping film tension
  • Operation through PLC control and LCD text for reliable performance
  • Pre-set mode and parameters as needed
  • Stable wrapping process with soft start and soft positioning
  • High efficiency and energy saving
  • Easy maintenance
